Proper Sizing
Determine preliminary chlorine chemical requirements, contact tank dimensions, and NaOCl storage capacity.
Engineering Excel Workbook
Chlorine Disinfection (NaOCl) Design Calculation
Size a sodium hypochlorite dosing system, rectangular chlorine contact tank, and NaOCl storage tank within one structured engineering calculation. Review chemical demand, effective contact time, and project-specific design requirements.
Excel WorkbookLinked Design DashboardEngineering Review
What This Module Helps You Design
Evaluate Performance
Review chlorine species, chemical consumption, hydraulic retention time, estimated effective contact time, and CT.
Support Design Decisions
Organize chemical, hydraulic, and storage calculations for project-specific engineering review.
Calculation Coverage
A linked calculation sequence, from design inputs to disinfection-system review.
Chemical Design
- NaOCl dose and chlorine demand
- Available chlorine concentration
- Chemical consumption and injection flow
- Alkalinity balance and TDS increment
Contact Tank
- Rectangular tank geometry and volume
- Hydraulic retention time
- Estimated effective contact time (T₁₀)
- CT and residual-chlorine review
NaOCl Storage & Review
- Working chemical inventory and autonomy
- Cylindrical storage tank sizing
- Fill fraction and operating reserve
- Linked dashboard and design checks
Workbook Experience
See the Complete Engineering Workflow
Review actual calculation inputs and the linked Dashboard before purchasing the workbook.

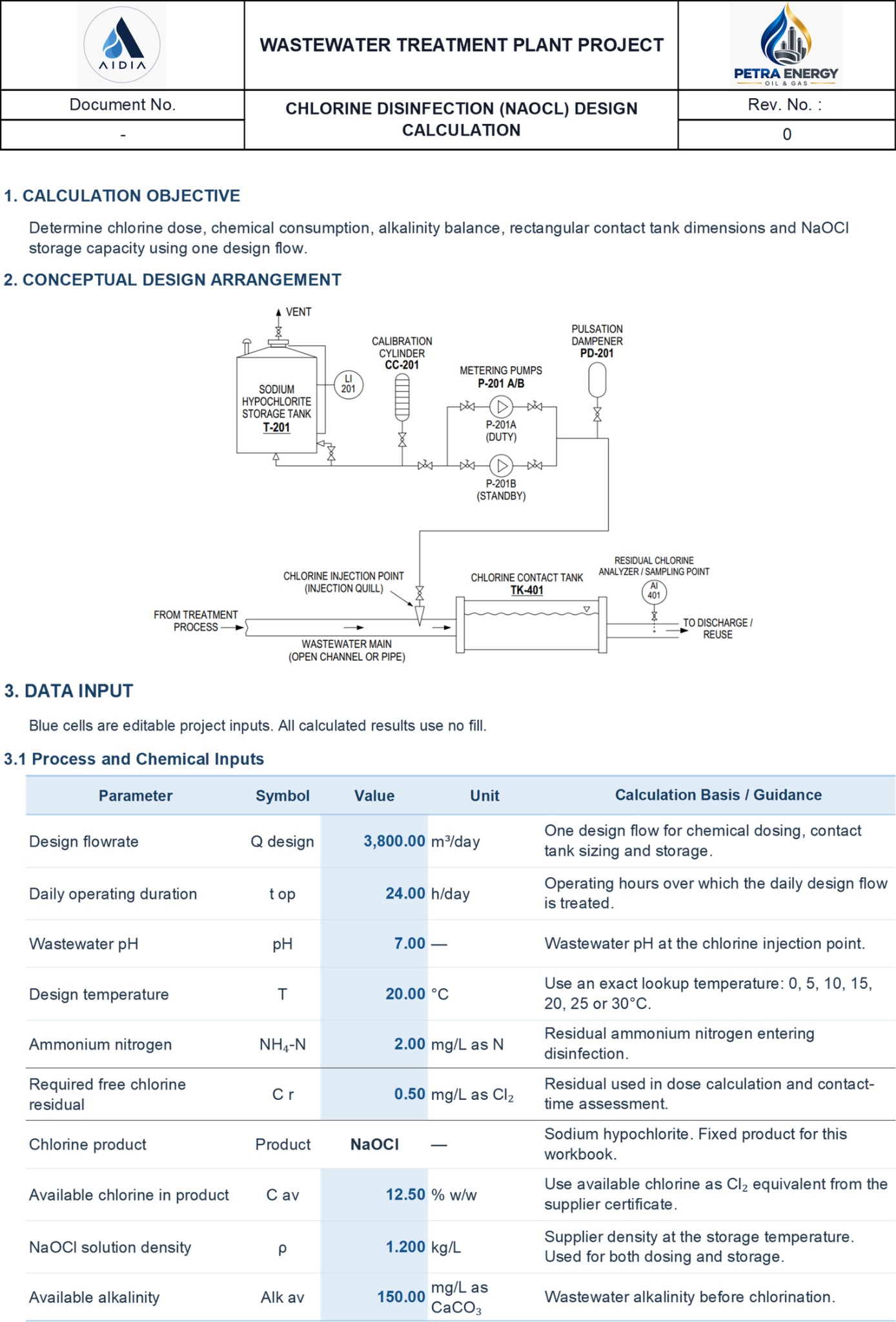

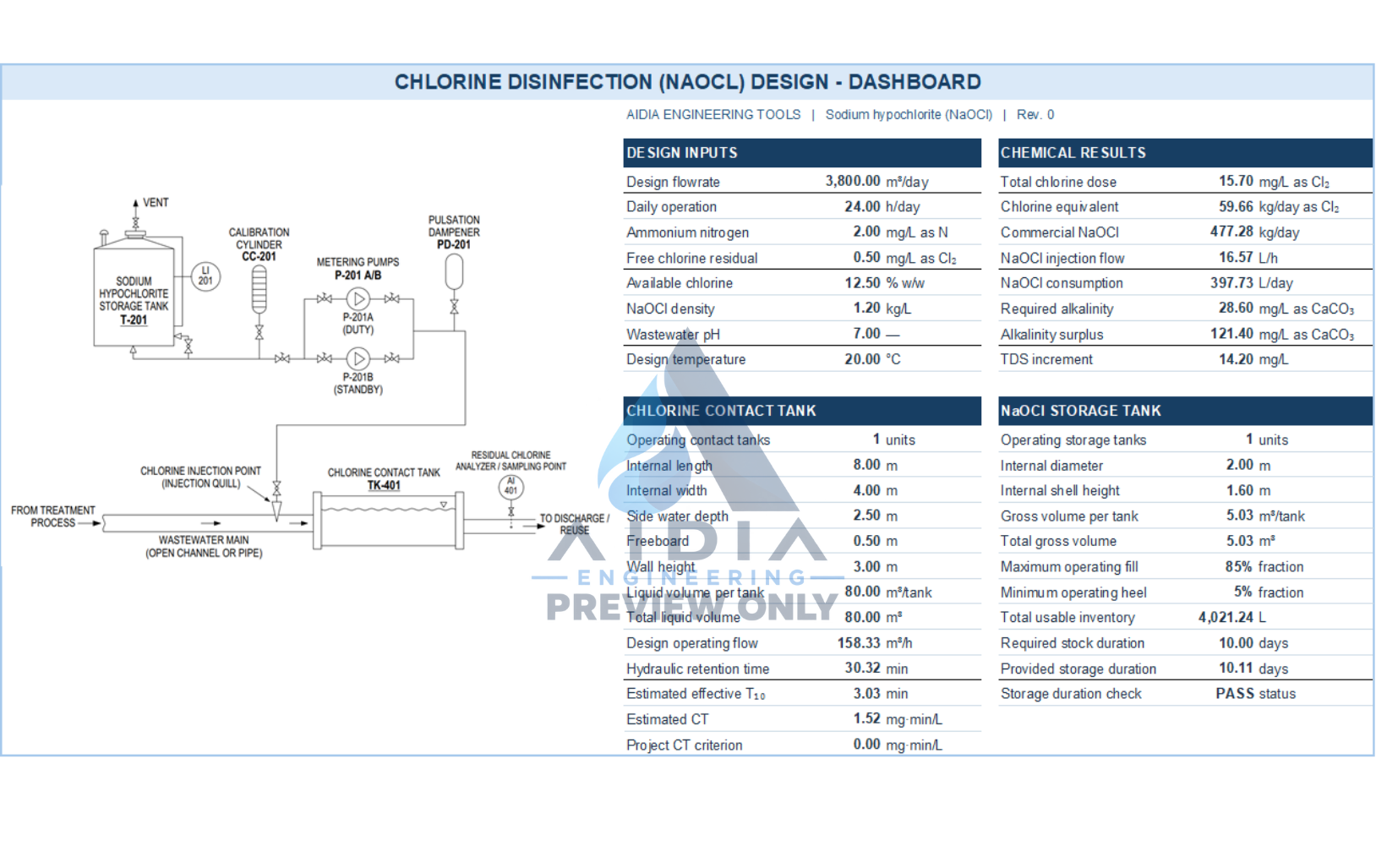

Actual chlorine disinfection dashboard excerpt. Example figures are workbook inputs and outputs, not verified project guarantees.
Built-in Design Checks
Review sizing outputs against the adopted design inputs and project requirements.
| Review Item | Workbook Evaluation |
|---|---|
| Chlorine design basis | pH, temperature, ammonia, available chlorine and required residual |
| Chemical demand | NaOCl consumption, injection rate, and chemical-strength inputs |
| Contact tank | Dimensions, hydraulic retention, and estimated T₁₀ |
| Disinfection review | Estimated CT; a project CT criterion must be established for acceptance |
| Chemical storage | Tank geometry, usable inventory, and available stock duration |
Example outputs are preliminary. Final dose, CT compliance, equipment selection, and NaOCl storage safety require project-specific engineering and vendor review.
What's Included
READ ME
Purpose & instructions
Cover
Project information
Calculation
Chlorine, contact time & storage
Dashboard
Design summary
Design Criteria
Adopted evaluation basis
Abbreviations
Symbols & units
AIDIA supports preliminary engineering calculation and review. Final project decisions remain subject to project-specific criteria, professional engineering judgement, and vendor confirmation.
Complete Your Chlorine Disinfection (NaOCl) Design
Move from preliminary chlorine dosing and contact-tank sizing to a structured engineering calculation and review workbook.
